Y50DX-D404TK2 4 sockets male military power supply connector
PRODUCT DETAILS
- Overview
Quick Details
Place of Origin: Jiangsu, China
Brand Name: Boyu
Model: Y50DX-D404TK2
Type: DIN
Application: Aviation, Military
Gender: Male
Password: 4p
Connector type: Circular connector
Material: Aluminum
Single block number: 12,14,16,18,20,22,24,32,D4
Plug type: T plug Z type
Structure: X-soldering, P-shield
Contact type: J pin K type
Relative temperature: -55°C ~ +125°C
and seals: Polychloroprene
Material material: copper alloy
Product Name: Y50DX-D404TK2 4 connection male military modification
Packaging and delivery
Sales Unit: Single / Piece
Size package size: 10X10X10 cm
Single piece gross weight: 0.600 kg
Packing type: carton, 2708*360*260
Product description
Y50DX-D404TK2 4 end male military power connector
Y50DX series round connection conforms to GJB101A standard. The same type of response plugs and sockets can be interchanged.
With bayonet coupling mechanism and contacts of the series of connectors with environmental resistance, high reliability, etc., widely used to connect high-current series of power supply.
如何订购

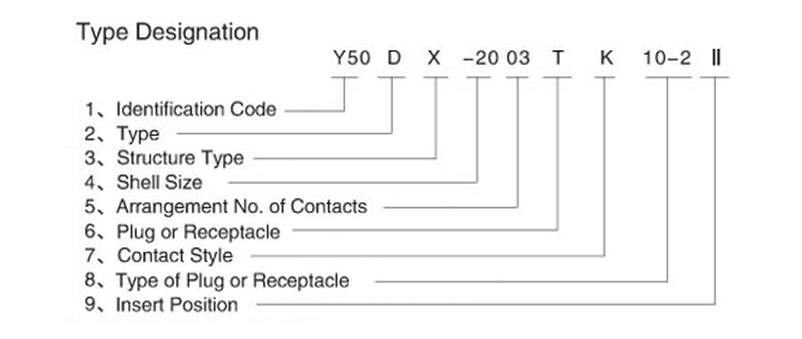

型号名称介绍

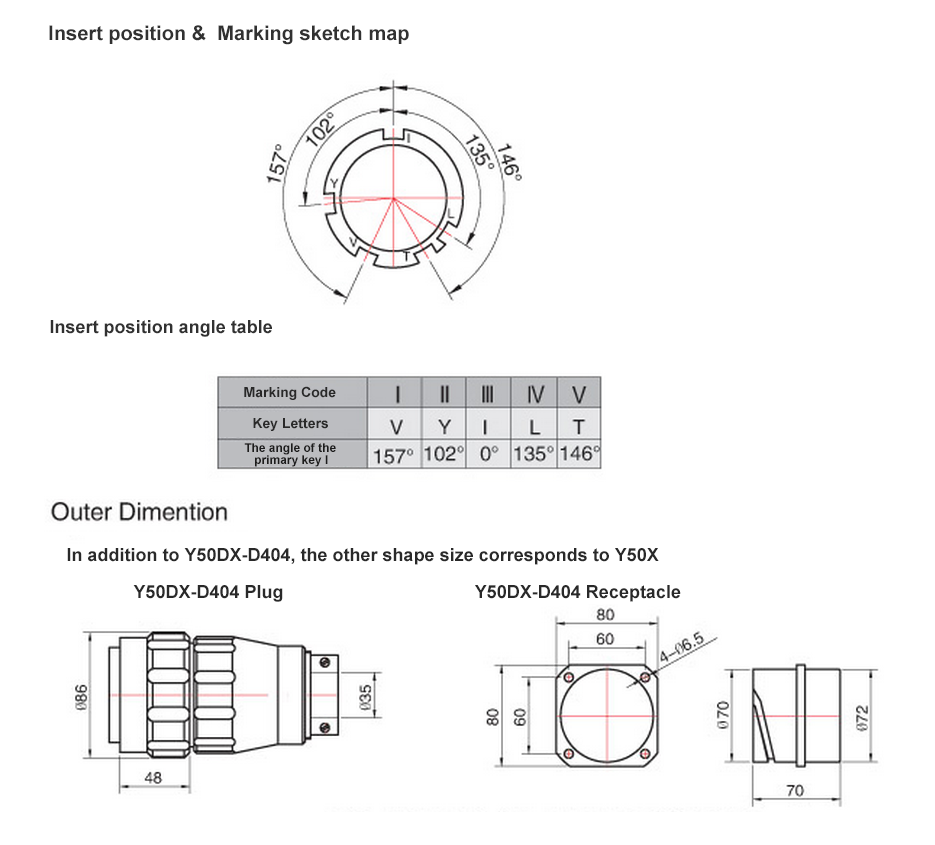

不。 类型名称 类型 设计 1 识别码 圆形连接器 Y50 2 类型 力量 D 3 结构类型 焊接塑料封盖 X 焊接塑料封罩 磷 4 Shell Size 12,14,16,18,20,22,24,32,D4 Number 5 Arrangement NO.of Contacts To"The Number and Arrangement of Contacts" Number 6 Plug or Receptacle Plug T Receptacle Z 7 Contacts Style Pin J Sockets K 8 Type of Plug or Receptacle Compress Grounding Plug 1 Cable Plug 2 Simple Style Plug 3 Anti-Wave Guard Plug 4 Elboe Fuard Plug 5 方法兰插座 10 方法兰电缆插座 10-2 圆形法兰电缆插座 11 螺丝固定插座 14 9 插入位置 I,II,III,IV,V,为 III 结束。 数字 Anti-misplug (Insulation mounting plate transposition instructions).
The periphery of the insulated mounting plate is equipped with keyways at different angles, which are deployed by the manufacturer according to the needs of use to ensure that plugs with the same specifications will not be inserted into the socket by mistake. In order to make the same specification of the plug corresponding to the same assembly serial number, can be inserted into the socket, while different assembly serial number corresponding to the plug, the socket can not be inserted.
Conditions of use environment
Environment Temperature -55 ° C ~ +125° C Relative Humidity at+40° C,90% ~ 95% Atomspheric Pressure 101.33KPa ~ 1.33kpa Sinusoidal Vibration 10 ~ 2000HZ, acceleration 196m/s2 Vibration 392m/s2 Shock 980m/s2 Contact Resistance ≤ 1m Ω
Dielectric withstand Voltage 1500V Insulation Resitance 3000MΩ
Durability Plug 500 Waterproofing ≥ 0.2MPa Salt Spray Conforming to Standard GJB101A
