Multipin military amphenol male socket manufacture

HOW TO ORDER   Marking, code and meaning Series                  YW series circular electric connectors        YW 1 -10  F  01  S  01 Style                 ...

PRODUCT DETAILS

HOW TO ORDER



Marking, code and meaning
Series                  YW series circular electric connectors        YW1-10 F 01 S 01
Style                   1 = Bayonet coupling
                           3 = Triple start thread


Type of plug and receptacle

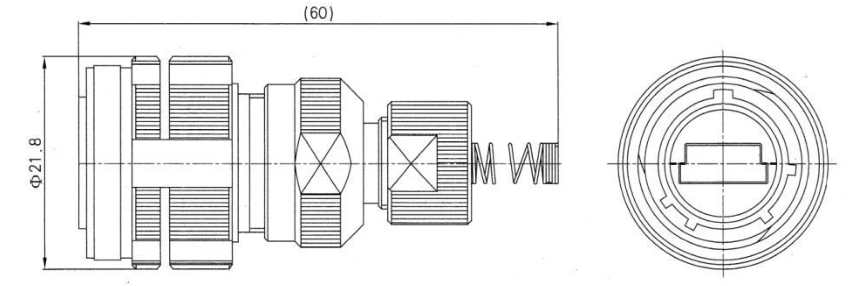

10 = Straight plug
20 = Flange receptacle
22 = Double bayonet coupling, flange mounting with thru bulkhead receptacle
23 = Nut receptacle
24 = Single bayonet coupling, screw mounting receptacle



Finish

F = Electroless nickel plating
B = Cadmium plating
E = Stainless steel passivated
H = Black
L = Olive green



Type of Internal Interface

01 = RJ45
02 = USB
03 = 1394
04 = Mini USB



Terminal of supporting the wire bundle

B = Straight solder
W = 90 elbow solder
S = Solder by cable
Omit = Crimp



Back shell

01 = Straight spring guard hermetic
02 = Straight heat shrinkable sleeve and hermetic

 Lectrical performance

Operating voltage150 V (RJ45)
30 V (USB, Mini USB)
40 V (1394)
Operating current1.5 A (RJ45)
1 A (USB, Mini USB)
1.5 A (1394)
Contact resistance≤ 20 MΩ (RJ45)
≤ 30 MΩ (USB)
≤ 50 MΩ (1394, Mini USB)
Insulation resistance≥ 5000 MΩ
Withstanding voltage1000v (RJ45)
500v (USB, Mini USB, 1394)
Data transferring

RJ45:

Loss: 0.3dB (100MHz)
Crosstalk: 40dB (100MHz)
Impedance: 100Ω
Transferring speed: 1000Mbps


USB and 1394:

Conform to USB2.0 and IEEE1394

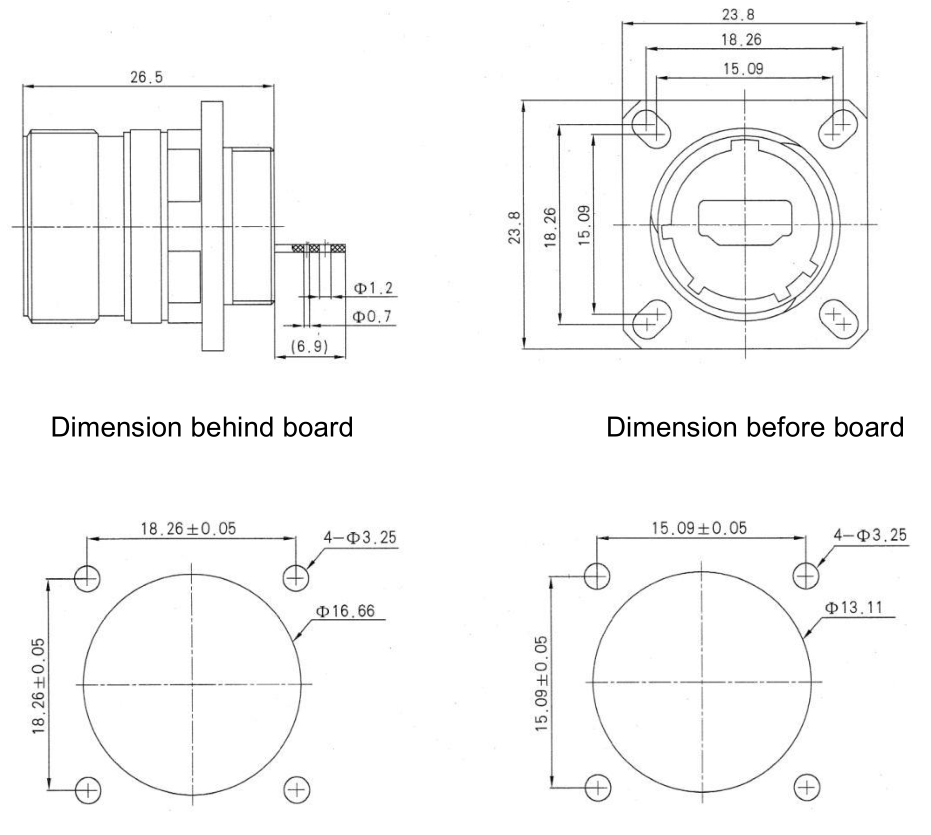

Size



The dimension is same as #14, 16 of MIL-C-24682 I and #14, 15 of MIL-DTL-38999 III.

Conditions of use environment

Environmental temperature-55 ° C ~ +125° C
Relative Humidityat 40° C, 90%~95%
Working Height
Elevation 30000m
Sinusoidal Vibration10 ~ 2000HZ, 147m/s2
Shock 490m/s2
Durability500
